Clamp Size Guide
Optitec recommends a heavy duty double clamp for moving trailers and caravans over 1500kg. There are numerous clamps available to fit different size drawbars.
Finding your perfect clamp:

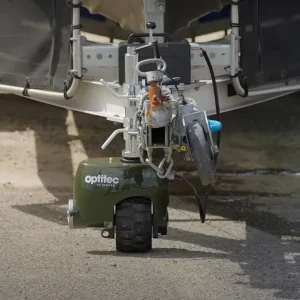

Step 1. Locate the best position on your drawbar to place the bracket; the Optimover is effective anywhere on the front drawbar where space allows.
Step 2. Measure the drawbar height.
Step 3. Measure the drawbar width.
Step 4. Use the size guide below to select your bracket.
Bold - Available in the US, contact us at [email protected] if you require a different sized clamp
To Fit | Clamp Dimensions | Additional Notes | |||||
Clamp | Name | Drawbar Height (mm) | DrawbarWidth (mm) | Total Width | Front Plate height x width | Width between U-bolts (mm) | |
OW-15 | Large Compact Duel Clamp 150mm | 150 | 50 | 160 | 150 x 140 | 140 | Most common fit for caravans |
OW-14 | Small Compact Duel Clamp 100mm | 100 to 130 | 50 | 150 x 140 | 140 | Most Jayco caravans (not the all-terrain) | |
OW-6 | Large Duel Clamp 150mm | 150 | 50-150 | 237 x 200 | 195 | Alternative to OW15 where drawbar width is larger than 50mm. U-bolts from the back fit better. | |
OW-7 | Small Duel Clamp 100mm | 100 | 50-100 | 235 x 170 | 195 | Ideal for boats (can go back-to-back with existing jockey wheel) | |
OW-8 | Medium Duel Clamp 130mm | 130 | 50-130 | 237 x 200 | 195 | Ideal for boats (can go back-to-back with existing jockey wheel) | |
OW21 | X Small Duel Clamp 75mm | 75 | 50-75 | 235 x 170 | 195 | Ideal for boats (can go back-to-back with existing jockey wheel) | |
OW-18 | Double Clamp Brack ALKO | NA | NA | 150 x 140 | NA | European & UK vans that use an Alko Chassis | |
OW-19 | Optitec Offset Double Clamp | 100 or 150 | 50-150 | 237 x 200 (150 mm plate) 235 x 170 (100 mm plate) | 195 | Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth | |
OW20 | Zone RV Dual clamp | TBC | |||||
