OW-20

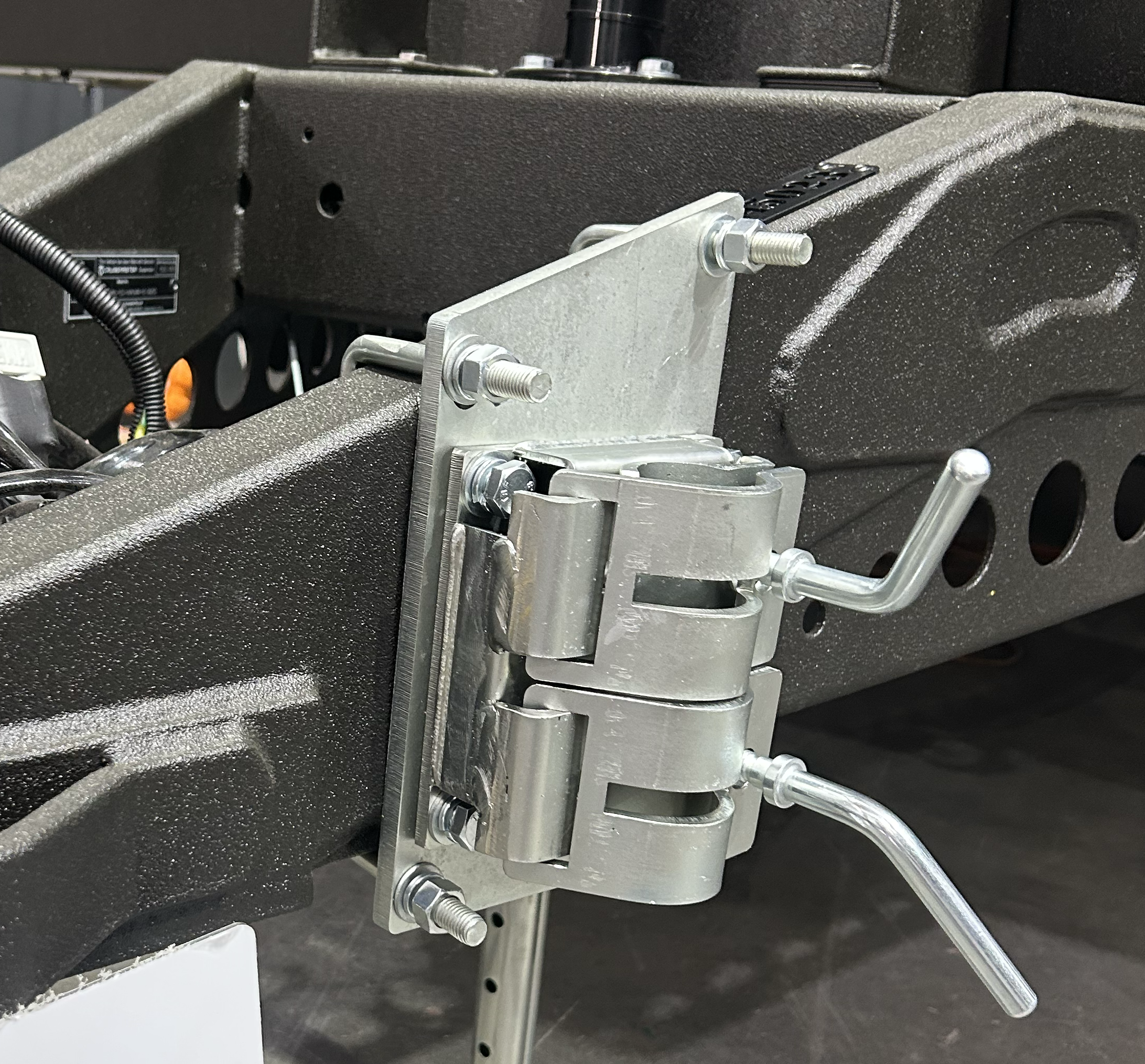

OW20 Gooseneck Chassis Double Clamp Bracket

$245.00

Heavy Duty Double Clamp to fit gooseneck tongues
Ideal for Zone RV and certain Ezy Trail and Snowy River vans.

  • Secure the Optimover to maximise performance when moving trailers over 1500kg
  • Sized to fit the goosneck tongue. Check gas bottle doesn’t impede placement
  • U-bolts connecting from the rear, no welding required
Made to fit: Gooseneck drawbars

Free
Shipping

3 Year
Warranty

Australian Engineered

Testimonials

Hear from Happy Movers

Ricky S.
Ricky S.
Very happy with our Optitec. First class from product to service and great guys too. Highly recommended 👌.
Jeff S.
Jeff S.
Optitec has a fantastic range of motorised jockey wheels and are extremely helpful in ensuring that you get the best result from your purchase. With numerous brackets and hardware to fit and suit your caravan the attachment to your van is made easy and effortless.I would highly recommend dealing with Optitec for your motorised jockey wheel needs.
Sharan E.
Sharan E.
Had an optic mover for over 3 years, what a wonderful product easy to use, couldn’t get my van into my shed without it best thing ever worth the money thanks to Tim and his team for the great service. Paul and Sharan 👍
Antony P.
Antony P.
Super informative, helpful and friendly even with all my questions
js_loader

Clamp Size Guide

Optitec recommends a heavy duty double clamp for moving trailers and RVs over 1500kg.   There are numerous clamps available to fit different size tongues.

Finding your perfect clamp:

Step 1.  Locate the best position on your tongue to place the bracket; the Optimover is effective anywhere on the front tongue where space allows.

Step 2.  Measure the tongue  height.

Step 3.  Measure the tongue width.

Step 4.  Use the size guide below to select your bracket.

Bold - Available in the US, contact us at [email protected] if you require a different sized clamp



To Fit

Clamp Dimensions

Additional Notes

Clamp

Name

Tongue Height (mm)

Tongue Width (mm)

Total Width
(mm)

Front Plate height x width
(mm)

Width between U-bolts (mm)



OW-15

Large Compact Duel Clamp 150mm

150

50

160

150 x 140

140

Most common fit for RVs

OW-14

Small Compact Duel Clamp 100mm

100 to 130

50



150 x 140

140

Most Jayco RVs (not the all-terrain)

OW-6

Large Duel Clamp 150mm

150

50-150



237 x 200

195

Alternative to OW15 where tongue width is larger than 50mm.

U-bolts from the back fit better.

OW-7

Small Duel Clamp 100mm

100

50-100



235 x 170

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-8

Medium Duel Clamp 130mm

130

50-130



237 x 200

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW21

X Small Duel Clamp 75mm

75

50-75



235 x 170

195

Ideal for boats (can go back-to-back with existing jockey wheel)

OW-18

Double Clamp Brack ALKO

NA

NA



150 x 140

NA

European & UK vans that use an Alko Chassis

OW-19

Optitec Offset Double Clamp

100 or 150

50-150



237 x 200


(150 mm plate)


235 x 170

(100 mm plate)

195

Used to get higher or lower (ie. in a carport)

Raise or lower by 150mm

Can be fitted to 150mm depth or 100mm depth

OW20

Zone RV Dual clamp



TBC




OW20 Gooseneck Chassis Double Clamp Bracket
