OW-14

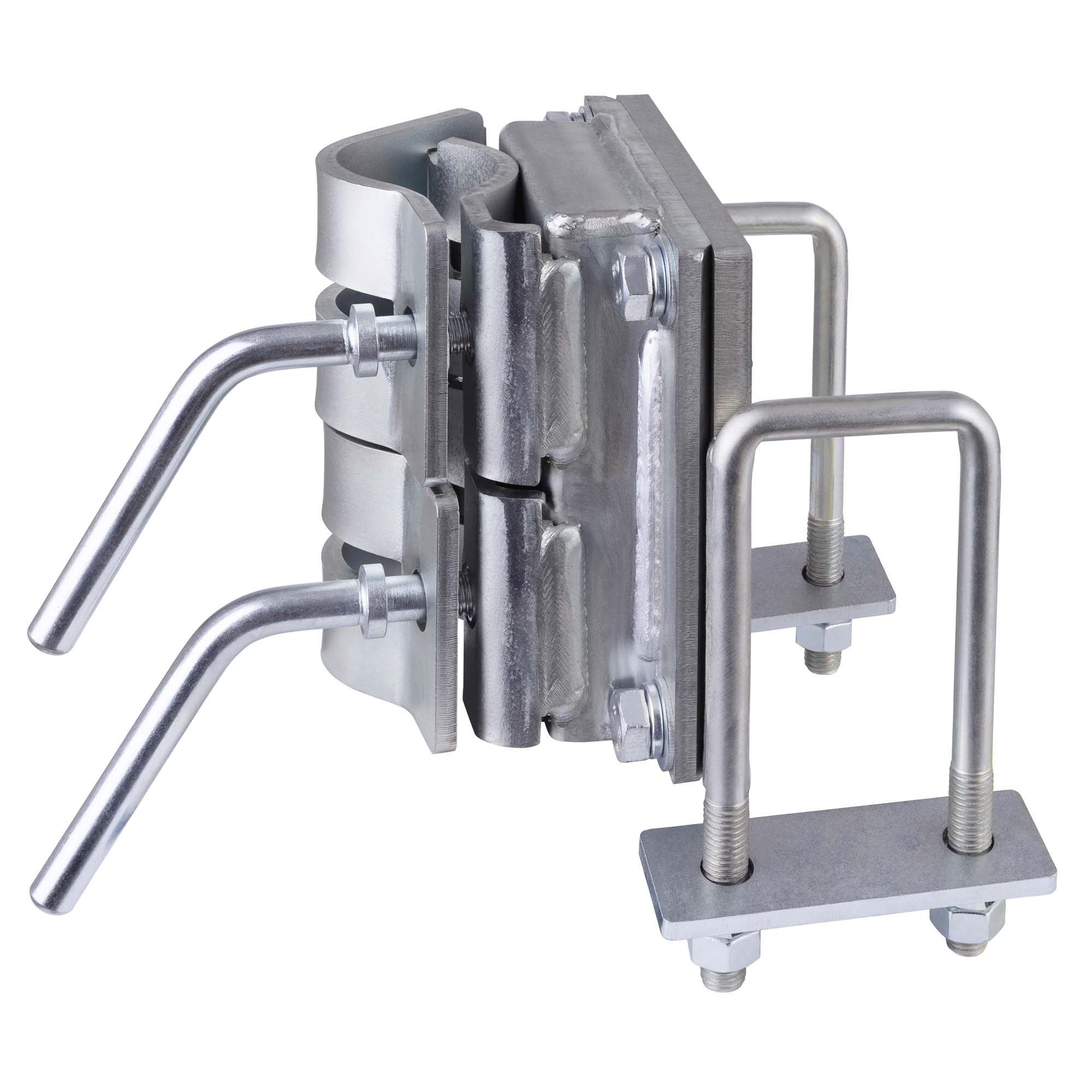

OW14 Compact Double Clamp Bracket – 100mm to 130mm

$160.00

Heavy Duty Double Clamp to fit tongue between 100 and 130mm high x 50mm wide
Most common clamp for Jayco RVs

Secure the Optimover to maximise performance when moving trailers over 1500kg
Can be fitted anywhere on the front tongue
U-bolts to fitted over the tongue, no welding required
Compact width (160mm wide) to minimise space

Made to fit:

Drawbar height: 150mm
Drawbar width: 50mm

Dimensions of Clamp:

150mm height
140mm width
140mm width between u-bolts

Free
Shipping

3 Year
Warranty

Australian Engineered

Testimonials

Hear from Happy Movers

Ken W

Used our Optimover on our caravan for the first time on the weekend and it is an absolute game changer. No more pushing and rotating our van under our carport. Now it’s as easy as pressing buttons on a remote to rotate our van 180 degrees and then reverse it into place when we get home from trips. Can’t recommend this thing highly enough!! Quality engineering and manufacturing too, which is wonderful to see these days 👍🏼

stephan K.

amazing what this unit can do, i jacknife my 17ft van on a slope using it, great engineering andso simple

Ricky S.

Very happy with our Optitec. First class from product to service and great guys too. Highly recommended 👌.

Jeff S.

Optitec has a fantastic range of motorised jockey wheels and are extremely helpful in ensuring that you get the best result from your purchase. With numerous brackets and hardware to fit and suit your caravan the attachment to your van is made easy and effortless.I would highly recommend dealing with Optitec for your motorised jockey wheel needs.

		To Fit		Clamp Dimensions			Additional Notes
Clamp	Name	Tongue Height (mm)	Tongue Width (mm)	Total Width (mm)	Front Plate height x width (mm)	Width between U-bolts (mm)
OW-15	Large Compact Duel Clamp 150mm	150	50	160	150 x 140	140	Most common fit for RVs
OW-14	Small Compact Duel Clamp 100mm	100 to 130	50		150 x 140	140	Most Jayco RVs (not the all-terrain)
OW-6	Large Duel Clamp 150mm	150	50-150		237 x 200	195	Alternative to OW15 where tongue width is larger than 50mm. U-bolts from the back fit better.
OW-7	Small Duel Clamp 100mm	100	50-100		235 x 170	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-8	Medium Duel Clamp 130mm	130	50-130		237 x 200	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW21	X Small Duel Clamp 75mm	75	50-75		235 x 170	195	Ideal for boats (can go back-to-back with existing jockey wheel)
OW-18	Double Clamp Brack ALKO	NA	NA		150 x 140	NA	European & UK vans that use an Alko Chassis
OW-19	Optitec Offset Double Clamp	100 or 150	50-150		237 x 200 (150 mm plate) 235 x 170 (100 mm plate)	195	Used to get higher or lower (ie. in a carport) Raise or lower by 150mm Can be fitted to 150mm depth or 100mm depth
OW20	Zone RV Dual clamp						TBC
